SPECIFICATIONS

Application: Desktop,Server,Workstation

Back I/O Ports: 1x RJ45

Brand Name: JGINYUE

Chipset: AMD B650

Chipset Manufacturer: AMD

Hign-concerned Chemical: None

Maximum Ram Capacity: 64 GB

Number Of Memory Slots: 2

Number of PCI: 0

Number of SATA Ports: 11

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 4.0

Package: Yes

Processor compatibility: AMD Athlon

RAID Supported: No

Socket Type: Socket AM5

Special Function: None

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR5

Usage Scenario: Enthusiast & Overclocking,Gaming,Office,DESIGN

With CPU: No

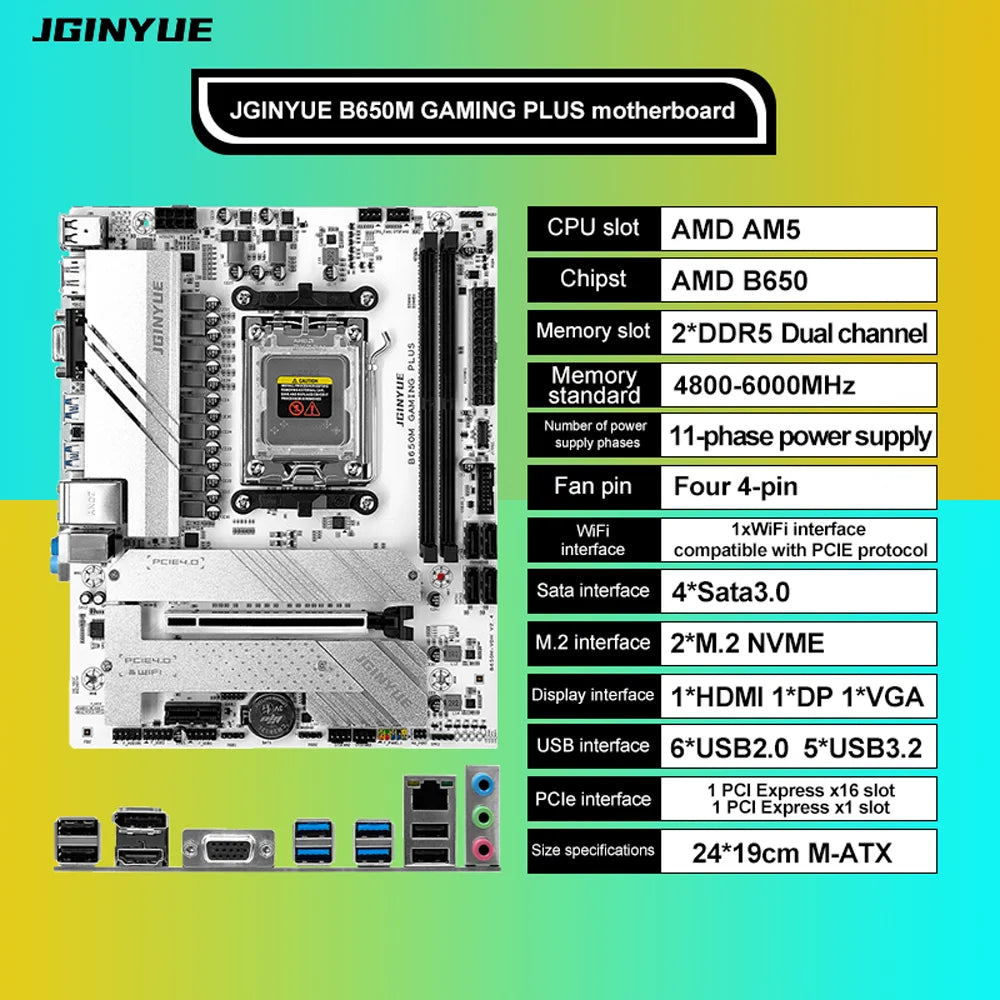

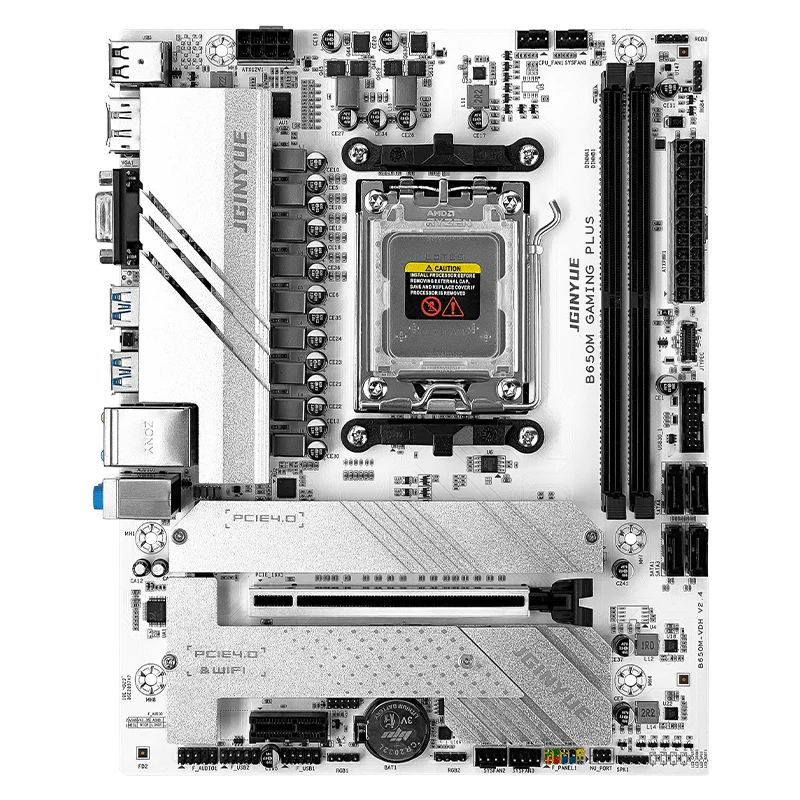

JGINYUE B650M GAMING PLUS motherboard

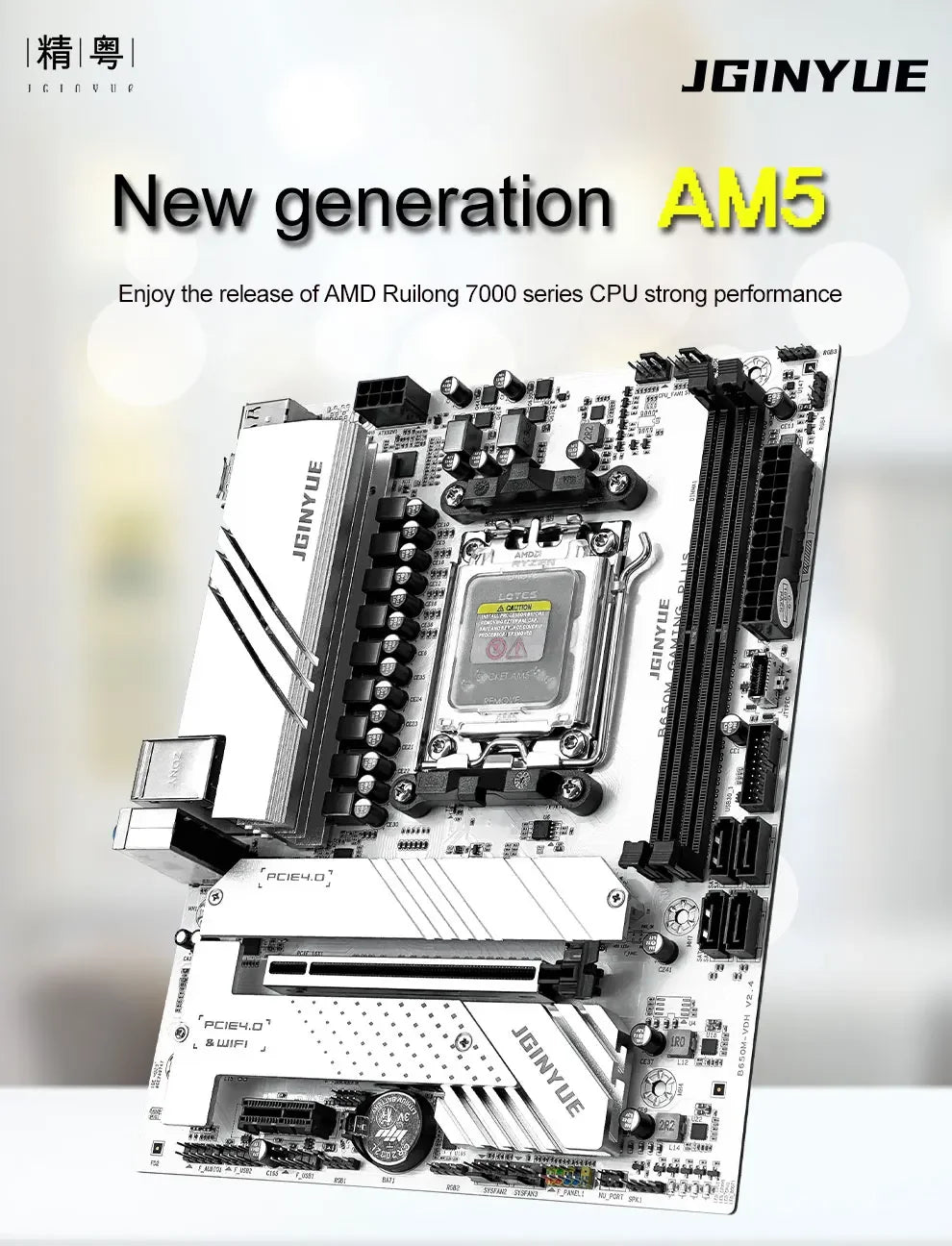

Supports AMD AM5 Ryzen 7000/8000/9000 series desktop processors

Supports dual channel 2 DDR5 memory slots with a maximum capacity of 64G

Memory frequency: 4800 to 6000+MHz

Display interface: 1xHDMI, 1xDP interface, 1xVGA interface

4xSATA3.0, 2xM.2 NVME protocol 4.0 interface

Rear 4xUSB 3.2, 4 USB 2.0 ports; Front pin 1xUSB3.2, 2xUSB2.0 (on 8000 series CPUs, due to insufficient channel resources, one rear USB may not be available)

1xPCI Express x16 slot
